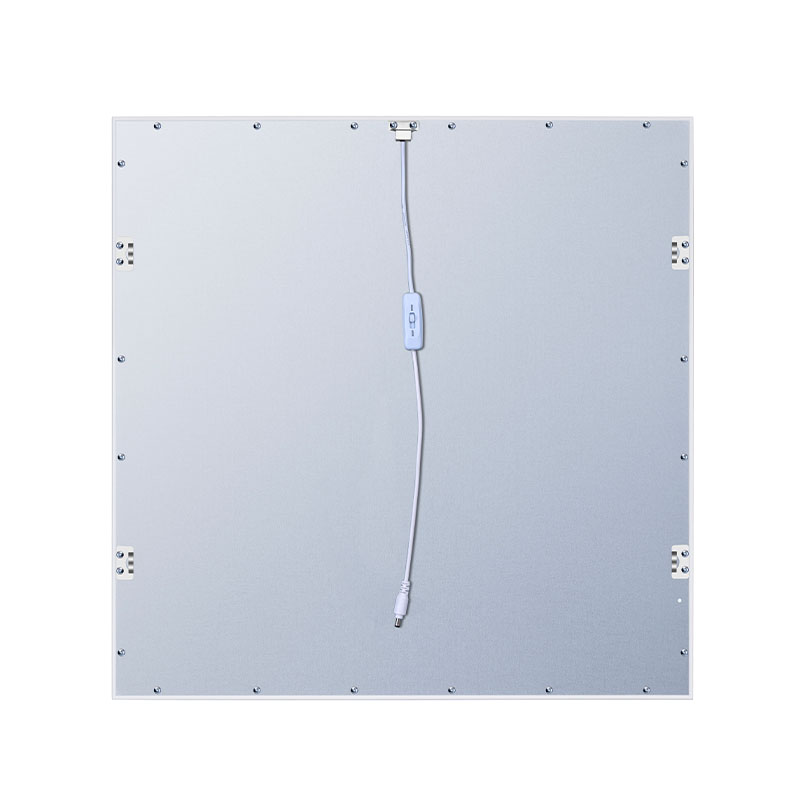

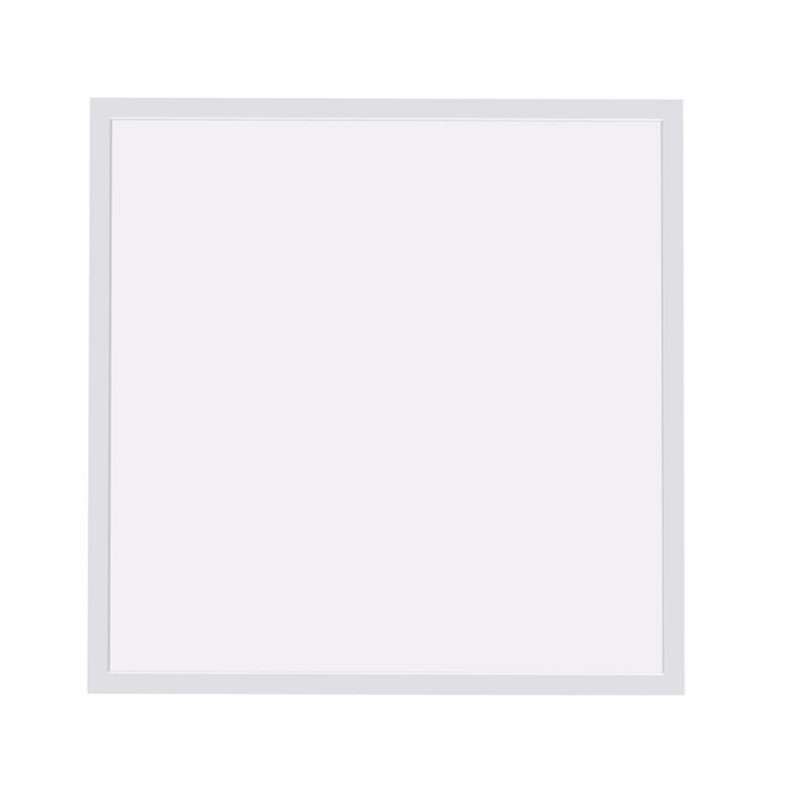

Product Title: | CCT Switchable LED Panel Light 595595 |

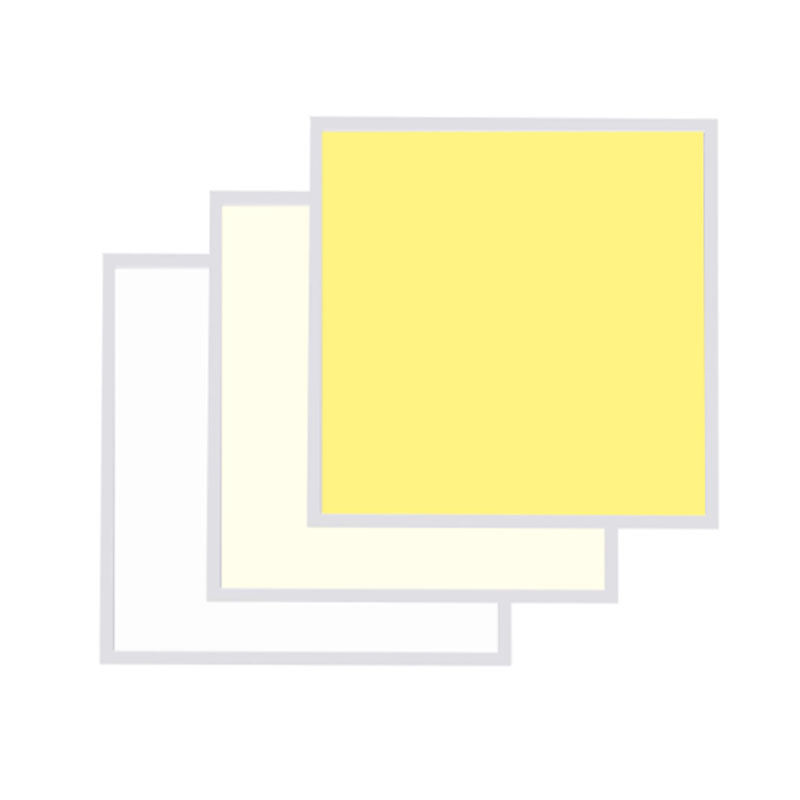

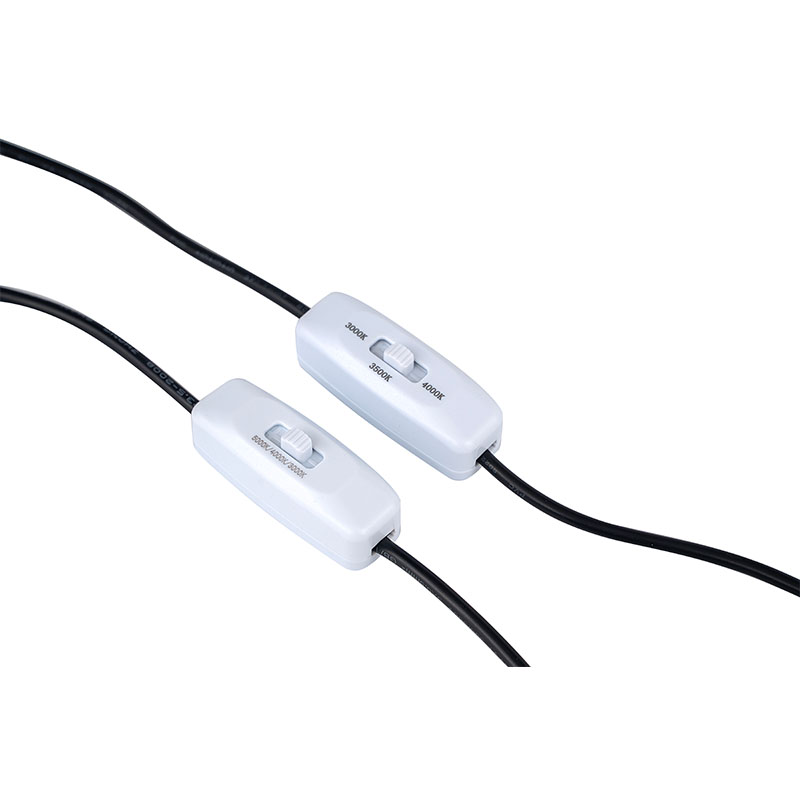

Product Features 1: | The same panel light, two color temperatures, reduce inventory, reduce operating capital |
Product Features 2: | The light is uniform and not dazzling |
Product Features 3: | We only use good quality core materials,include LM80 LED, certified LED driver, thick copper PCB, certified wires. |
Product Parameters | |||||||
No | Products Sereis | Size（MM） | Watt (W ) | Input Volt (Vac) | RA | lm/W | Lumen (LM) |
1 | F2 | 595*595*9.5 | 40 | 200-240 | >80 | 120 | 4800 LM |
1 | F2 | 595*595*9.5 | 36 | 200-240 | >80 | 120 | 4320 LM |
Application reference (the following parameters are only for selection reference based on typical values. For different project requirements, you can contact the factory for separate lighting design for the project. The design fee will be prepaid before the order is placed and refunded after the order is placed) | ||||||||
No | Products Sereis | Size（MM） | Watt (W ) | Typical Lumen | Height of Space(M) | LUX | Lighting Power Density(W/m²) | Applying Area (m²) |
1 | F2 | 595*595*9.5 | 40W | 4800LM | 3M | 300 | 3.05 | 13.1 m² (typical) |
2 | F2 | 595*595*9.5 | 36W | 4320LM | 3M | 300 | 2.75 | 12.3 m² (typical) |
