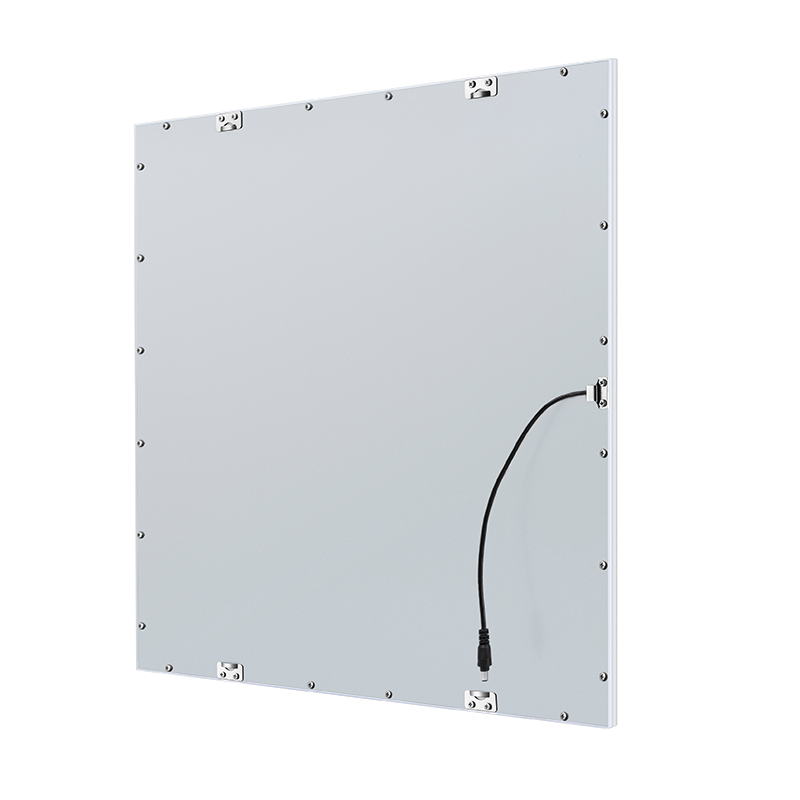

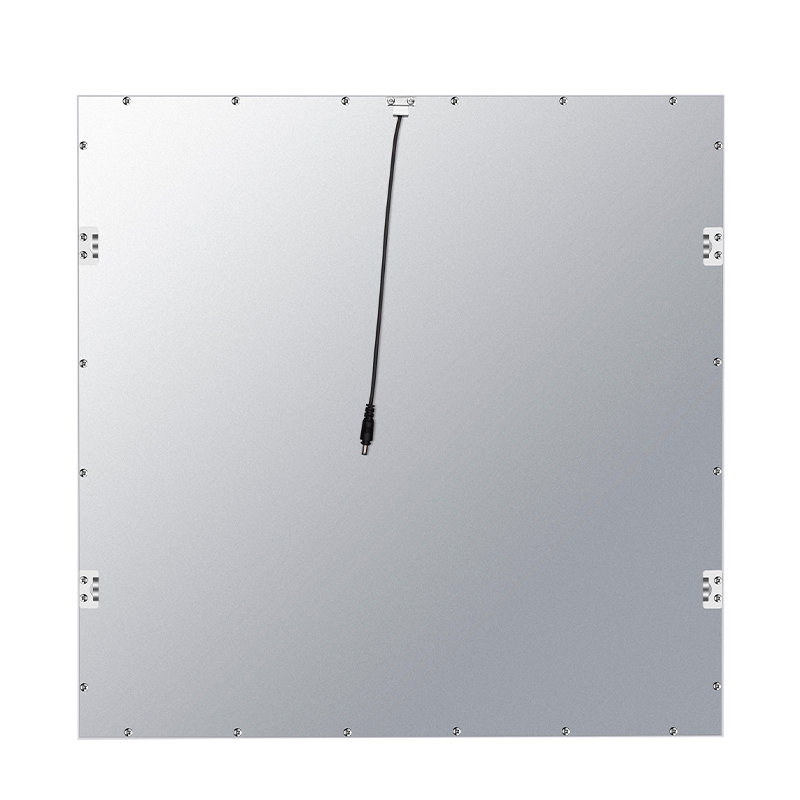

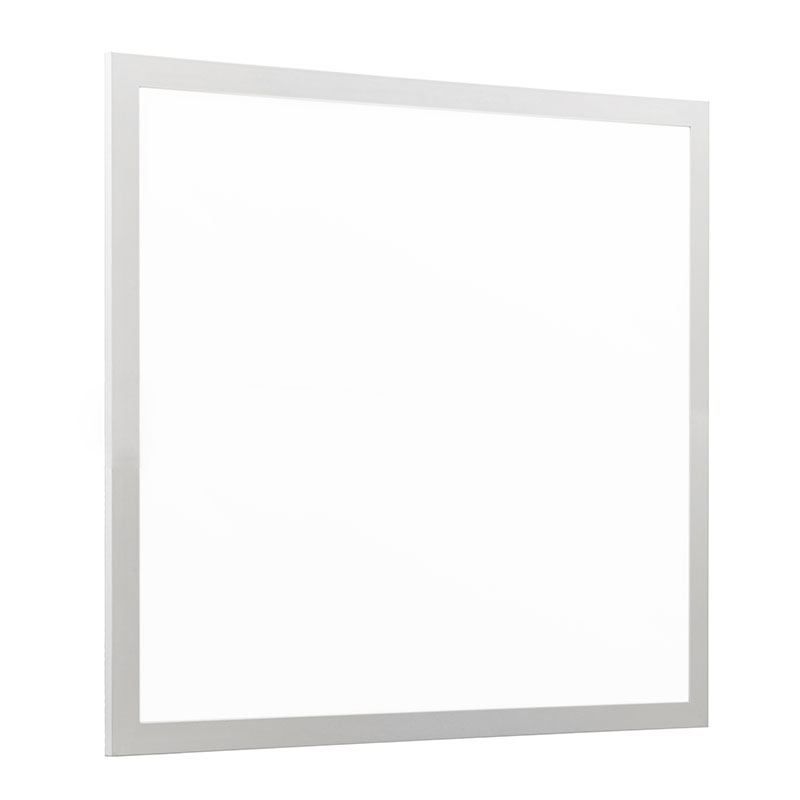

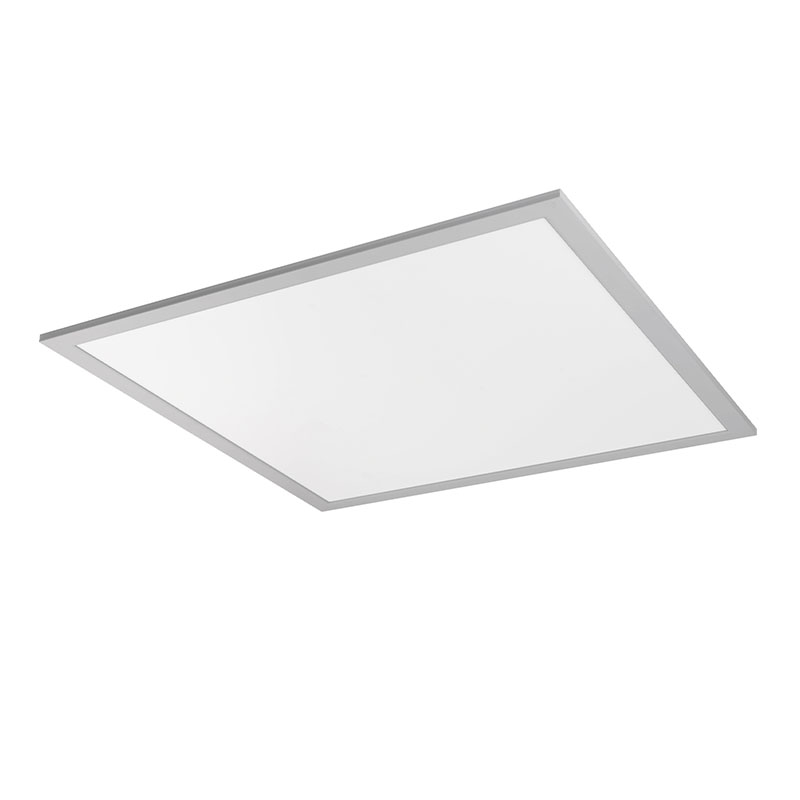

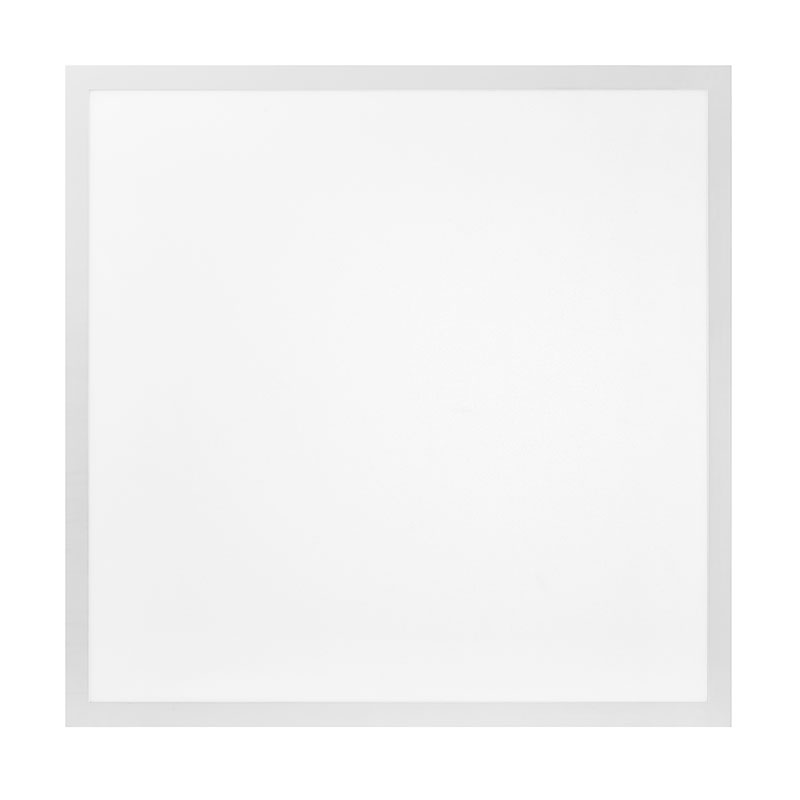

Product Title: | Eye protection anti-glare side-emitting panel light 595595 5-year warranty |
Product Features 1: | Eye protection against glare |
Product Features 2: | Reduces visual fatigue and improves focus and efficiency under lighting enviroment. |
Product Features 3: | Mature transparent material optical design ensures eye protection |
Product Features 4: | We only use good quality core materials,include LM80 LED, certified LED driver, thick copper PCB, PMMA LGP, certified wires. |
Product Features 5: | We PMMA as our LGP, the panel don't be yellow within 5 years. |
Product Parameters | ||||||||
No | Products Sereis | Size（MM） | Watt (W ) | Input Volt (Vac) | RA | lm/W | Lumen (LM) | UGR |
1 | F2 | 595*595*9.5 | 40 | 200-240 | >80 | 120 | 4800 LM | UGR<19 |
2 | F2 | 595*595*9.5 | 36 | 200-240 | >80 | 120 | 4320 LM | UGR<19 |
3 | F2 | 595*595*9.5 | 32 | 200-240 | >80 | 120 | 3840 LM | UGR<19 |
Application reference (the following parameters are only for selection reference based on typical values. For different project requirements, you can contact the factory for separate lighting design for the project. The design fee will be prepaid before the order is placed and refunded after the order is placed) | ||||||||
No | Products Sereis | Size（MM） | Watt (W ) | Typical Lumen | Height of Space(M) | LUX | Lighting Power Density(W/m²) | Applying Area (m²) |
1 | F2 | 595*595*9.5 | 40W | 4800LM | 3M | 300 | 3.05 | 13.1 m² (typical) |
2 | F2 | 595*595*9.5 | 36W | 4200LM | 3M | 300 | 2.93 | 12.3 m² (typical) |
3 | F2 | 595*595*9.5 | 32W | 3840LM | 3M | 300 | 2.88 | 11.1 m² (typical) |
